Each issue, we choose one article to share online. Rob Hadden is a regular contributor, building mostly with earth. This time, he shares the porch addition he has made to his house, plus details how he laid the slate roof.
The full article can be viewed on our website:
The individual photographs from the article can be viewed here
The church porch at St Baglan, Llanfaglan in Wales that started it all.
A fantastic original ‘replica’.
Inspiration from a very unusual window in the circular stone staircase of ‘The Old Post Office’ in Tintagel, Cornwall.

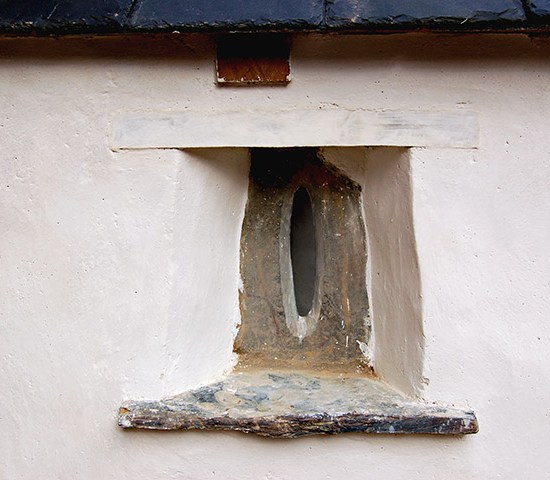

The resulting ‘replica’ window.
Close up of eaves detail from underneath

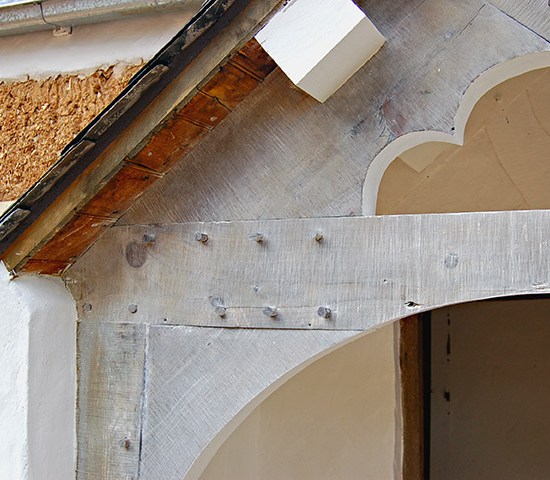

Close up of timber arch
View from inside the porch
Detail of underside of slate and timber joints

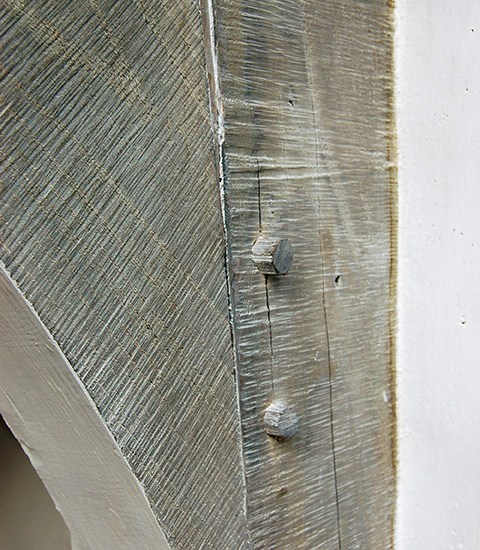

The new timbers needed a little help to make them look the part.
It is best if copper nails are used as they do not rust. Even galvanised nails can rust over time and as they expand with rust, they may break the slate.
As with laying flat tiles that are double overlapped, the first course (eaves) is shorter than the rest and has to be top nailed. This is to ensure that it will be properly lapped and watertight at the bottom.

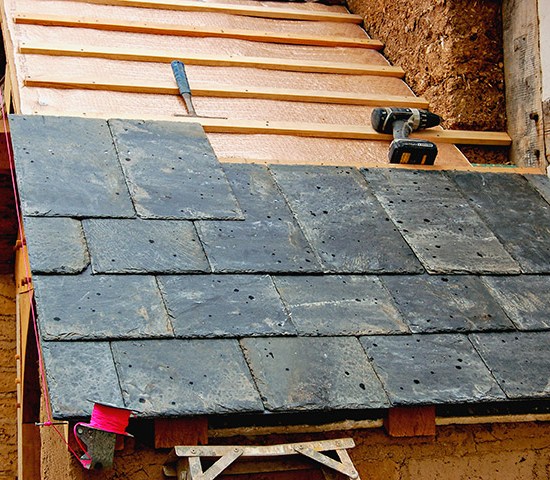

Markings for overlap still visible

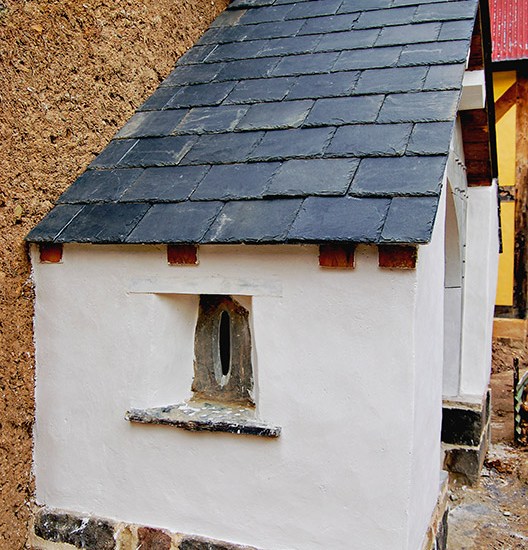

Neatly finished slate roof plus stone window
If the nail hole is not slightly countersunk, the flat head of the nail will protrude and cause the next slate laid over it to ride up giving a gap.

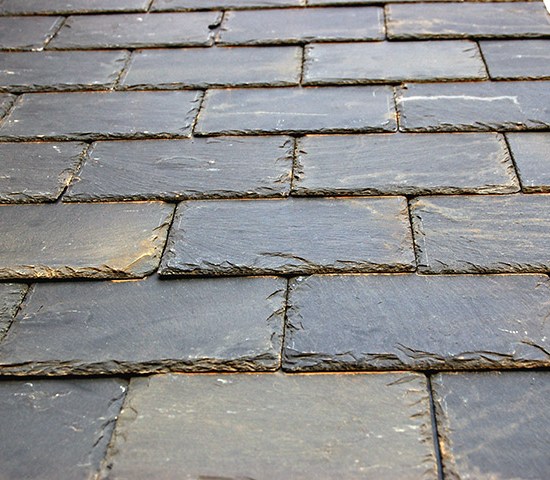

Correct head lap and side lap, combined with gauge, provide a watertight seal.

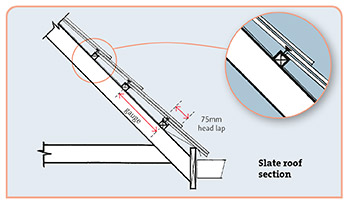

Showing gauge and head lap details.
